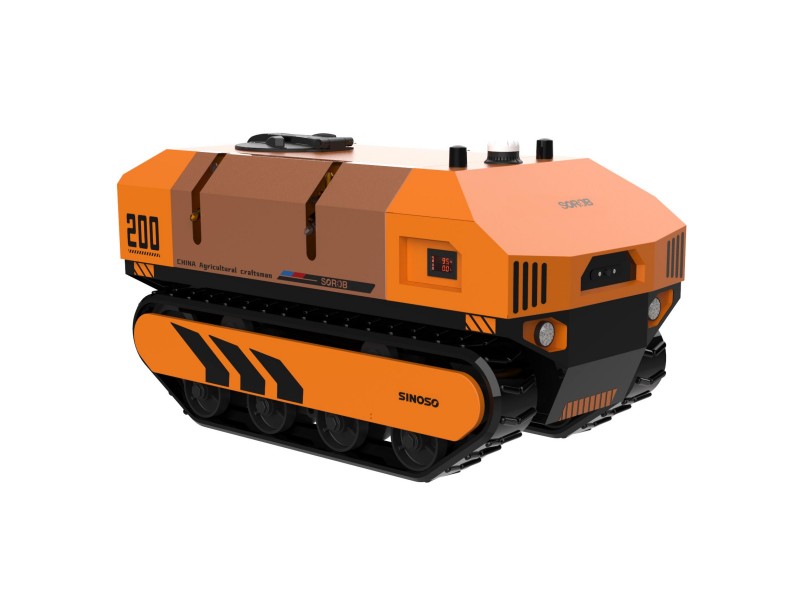

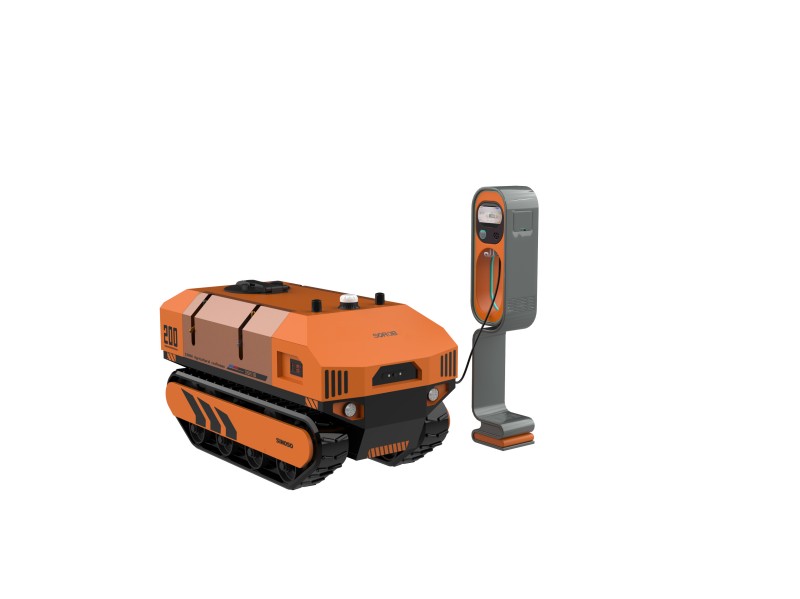

SINOSO SOROB 200 Multi-function Orchard Robot
SINOSO SOROB 200 multi-function orchard robot is a compact, all-in-one smart spraying solution for greenhouse/outdoor tasks. Combining precision pressure spraying with auto-drive path planning, it delivers full leaf coverage through advanced oscillating nozzles while cutting chemical use. Built on a rugged crawler chassis, it conquers all terrains and adapts to multiple tools for a variety of farming tasks. With remote monitoring, smart alerts, and safe auto-return, it ensures your operations run smoothly and efficiently, every time.
Product Features
1. Compact & Agile All-Terrain Platform
• Ultra-compact design: 1.2×0.8m body, perfectly suitable for operation scenarios in greenhouses and small orchards
• All-terrain chassis: crawler suspension + 30° climbing capacity under full load
2. Autonomous Precision Navigation
• Multi-source fusion navigation: Integrates RTK, vision, LiDAR, and IMU through advanced algorithms to enable seamless operation even in signal-blocked environments(Optional extra)
• All-weather operation: High-intensity LED lighting and advanced navigation technology enable 24h operation.
•Smart management cloud platform:
◦ Real-time warning for battery level/chemical quantity
◦ Automatic return-to-home trigger mechanism: alarms when battery <15% or chemical quantity <5%, and navigates to the supply point
3. Targeted Spraying Technology
• Pressure adaptive system: 0.5-10MPa stepless adjustment
• Bionic double-swing nozzles: 120° three-dimensional swing (leaf back coverage rate ≥90%)
• Efficient application control:
◦ 8m spraying width on single side
◦ 40% reduction in chemical drift
4. Smart Crop Management

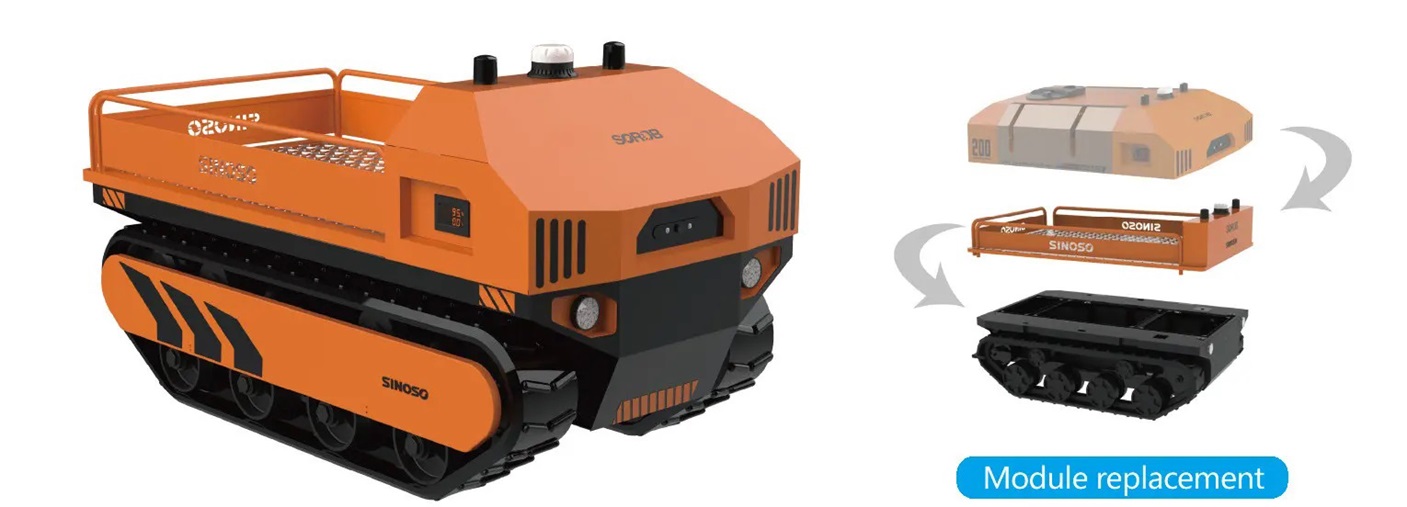

• Modular implement interface: supports multi-functional expansion such as weeding/transport
• Anti-residue chemical preparation system:
◦ Three-stage filter screen (150μm aperture)
◦ Vacuum residue discharge design (residue amount <0.1%)
5. Human-Centric Engineering
• Large-capacity 200L chemical tank, made of stainless steel or PE material, featuring corrosion resistance and easy cleaning.
• Powered by lithium batteries, with a battery capacity of 100Ah*2 and a nominal voltage of 60V, it delivers strong endurance.
• Equipped with a high-efficiency charger (input 220V / output 72V / current 50A), enabling fast charging with no waiting.
• The remote control range can reach 1km (without obstacles), ensuring convenient and flexible operation.
Application Scenarios
SINOSO SOROB 200 multi-function orchard robot offers excellent adaptability, making it suitable for a wide range of greenhouse and outdoor orchard environments. It operates efficiently in row spacings from 2 to 5 meters, ensuring flexible deployment across different planting layouts.
Selection Instructions
| Model | 200A | 200B | 200MAX |
| SOROB Performance Parameters | |||
| Drive type | Crawler drive | ||
| Dimensions | 1660(L) × 800(W) × 920(H) mm | ||
| Min ground clearance | 170 mm | ||
| Weight | 500 kg | ||
| Maximum pressure | 8 MPa | ||
| Power | 5.8 KW | ||
| Nozzles | 4 | ||
| Nozzle swing angle | Bionic spraying 0° ~ 120° | ||
| Single-side spray width | 8 m (Max) | ||
| Max load climb angle | 30° (Incline 60%) | ||
| Max speed (full load) | 1.38 m/s | ||
| Tank capacity | 200 L | ||
| Tank material | Stainless steel or PE | ||
| Battery type | Lithium battery | ||
| Battery capacity | 100Ah × 2 | ||
| Voltage | 60 V | ||
| Charger specs | Output 72V / Current 50A | ||
| Remote range | ≥ 1 km (unblocked) | ||
| Max flow | 14 L/min | ||
| SOROB PILOT Smart Operation System | |||
| Navigation | ◦ | GNSS | Multi Fusion Nav |
| Navigation accuracy | ◦ | Centimeter-level | Centimeter-level |
| Planning Navigation | ◦ | • | • |
| SOROB X Multifunctional Expansion System | |||
| Name | SOROB 200 | ||

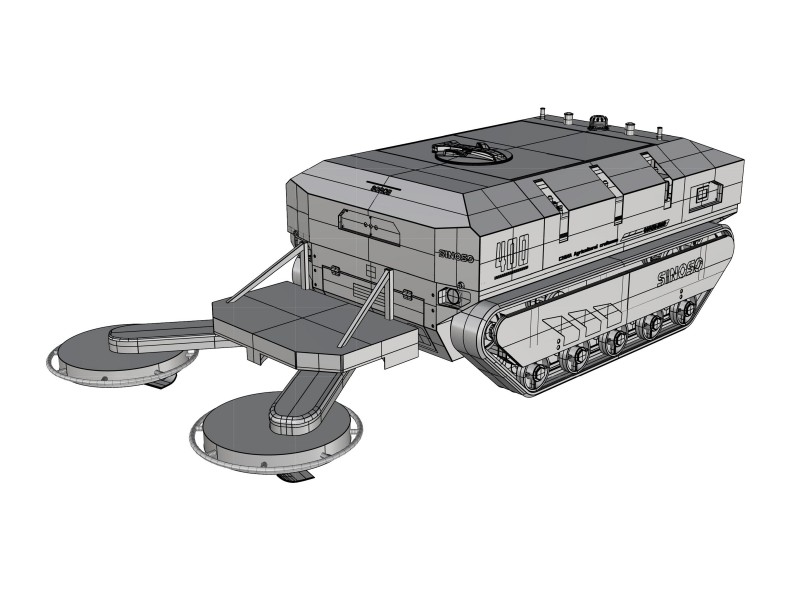

| Weeding | 200 W | ||

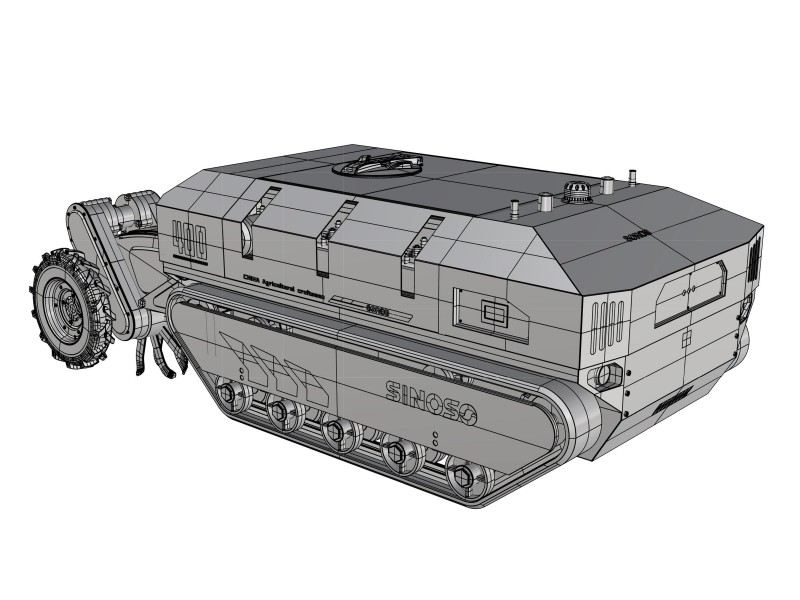

| Rotary tillage | 200 R | ||
| Transportation | 200 T | ||
| Ditching | 200 D | ||
Instructions:
1. The 200 model uses GNSS for path planning in open-air orchards, enabling precise route planning and improved efficiency.
2. The 200MAX employs multi-sensor fusion navigation for autonomous operation in complex greenhouse orchards.
3. SOROB X supports multi-functional modules (weeding 200W, rotary tillage 200R, transportation 200T, trenching 200D), sold separately for flexible combinations.
4. Naming follows basic model + functional modules, such as SOROB 200A + 200W + 200R + 200T + 200D.

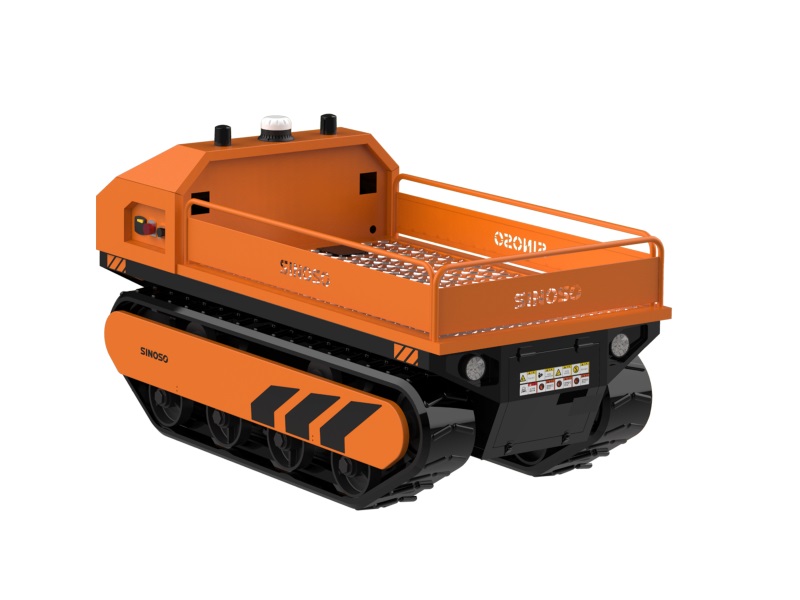

Transportation Unit
SOROB X multi-functional expansion system features lightweight electric modules for new efficient orchard management. Modules include precision weeding (200W), efficient soil tillage (200R), fruit transportation (200T), and quick ditch digging (200D). Sold separately, they enable flexible combinations and mode switching to meet diverse orchard needs, delivering comprehensive support for fine-grained management.
Why Choose SINOSO
Research Partner
SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
