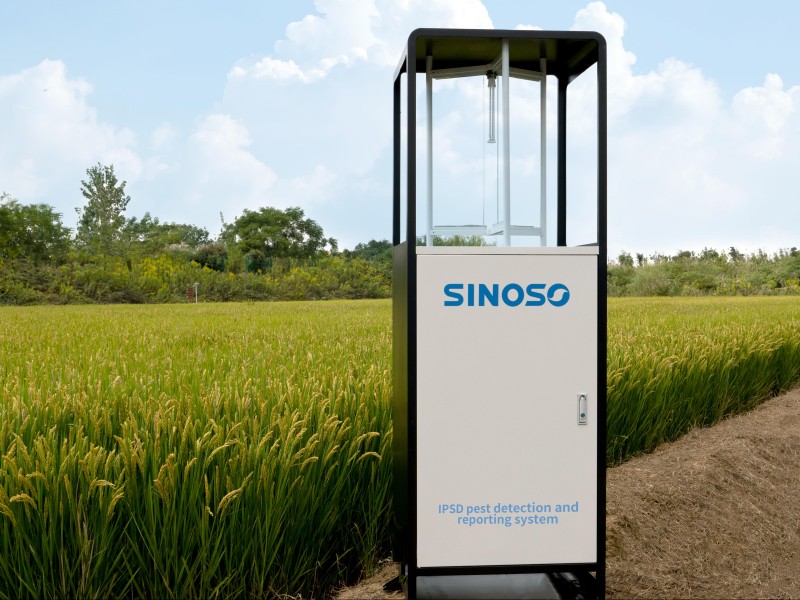

IPSD Insect Pest Monitoring And Reporting System

IPSD Insect Pest Monitoring And Reporting System

The SINOSO IPSD Insect Pest Monitoring and Forecasting System is an unattended smart agriculture solution integrating insect capture, image collection and transmission, and cloud management. It enables 24/7 uninterrupted and accurate collection of insect pest information, which is transmitted to a cloud platform. By connecting to an expert system, it comprehensively and intuitively presents agricultural insect pest status and changes at each monitoring site, achieving stable, accurate, and reliable real-time online monitoring of regional agricultural insect pest situations. It is widely used in agriculture, forestry, horticulture, scientific research institutions, universities, and other fields for insect and pest monitoring and forecasting.

Product Features

1. High-Efficiency Pest Capture & Processing：

• 98% Pest Elimination Rate – High-temperature sterilization ensures ≥98% insect mortality while maintaining ≥98% specimen integrity for accurate AI identification.
• Rain-Separation Technology – Patented auto-rain rejection prevents water interference, ensuring dry and intact insect samples.
• Anti-Mixing Mechanism – Vibrating + brush-cleaning collection chamber isolates pests by time intervals, eliminating cross-contamination.

2. Smart Remote Monitoring & Control：

• AI-Powered Pest Recognition – Automatically captures, classifies, and uploads high-resolution insect images via 4G/5G/NB-IoT.
• Cloud-Based Management – Remotely adjust operating schedules, trap activation, and GPS-track all field units via centralized dashboard.
• GPS Anti-Theft Protection – Real-time location tracking with geo-fencing alerts for device security.

3. IoT-Enabled Data Analytics：

• Multi-Dimensional Pest Trends – Cloud platform aggregates data by time/location, generating heatmaps & infestation forecasts.
• Early-Warning System – Automated alerts when pest thresholds exceed predefined levels.

Technical Parameter

Project		Description
Basic parameters	Light source	20W black light tube(main wavelength:365nm)
	Chamber temp.	15-min op:85%Temp.
	Startup time	≤5S
	Insulation resistance	≥2.5 MΩ(Leakage Protection)
	Control mode	Light control,rain control,time control
	Camera	5 million pixels
Work env.	Temp.range	0~70℃
	Humidity range	0~85%relative humidity,no condensation
	Power supply	Mains power supply:220VAC/Solar power supply+Battery
Other	Communication	4G
	Chassis material	It is made of steel structure and treated with electrostatic powder spraying

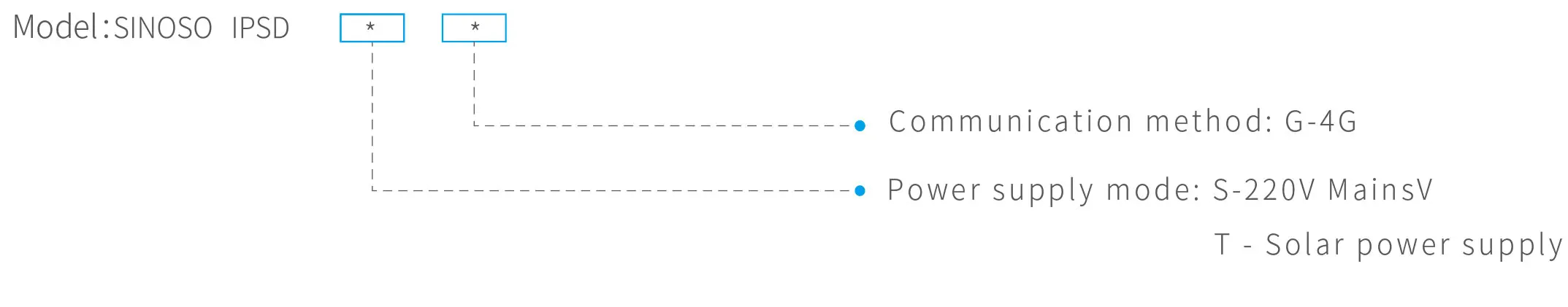

Selection Instructions





Application Scenarios

Widely applicable to:



√ Agricultural pest monitoring and forecasting

√ Forestry insect situation tracking

√ Horticultural pest management

√ Scientific research in entomology (universities and research institutions)



Why Choose SINOSO

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
