MPIS Integrated Smart Agricultural Irrigation Pump Station(Motor-pumped Well)

MPIS Integrated Smart Agricultural Irrigation Pump Station(motor-pumped well)

SINOSO MPIS integrated smart agricultural irrigation pump station (motor-pumped well) is an IoT-based intelligent irrigation terminal designed for the efficient control and management of groundwater well irrigation. It enhances the utilization efficiency and effectiveness of water resources while enabling automated irrigation management in agricultural settings. The system integrates multiple functions, including smart card water access, automated well control, variable frequency constant pressure water supply, remote monitoring, anti-theft alarm, self-diagnosis, and remote fault detection. It supports automatic metering of water and electricity, local and remote operation, as well as centralized management.

1. Core Functions

• Access Control: RFID-enabled water withdrawal authorization

• Smart Pumping: Variable frequency drive (VFD) optimized supply

• Security System: Tamper-proof alerts with geofencing

• Self-Diagnostics: Predictive maintenance reporting

2. Operation Modes

• Local Control:

• Touchscreen interface with emergency stop

• Real-time consumption display

• Remote Management:

• Cloud-based performance monitoring

• Mobile app command authorization

3. Management System

• Centralized dashboard for multi-well coordination

• Automated reporting (water usage/efficiency/CO₂ reduction)

• API integration with farm management software

4. Compliance Standards

• Water measurement: ISO 16391 Class 1

• Electrical safety: IEC 60364-7-702

• Data security: AES-256 encryption

Technical Parameter

Project		Description
Measurement Accuracy	Water measurement accuracy	Level 2
	Electricity measurement accuracy	Level 0.5
	Temperature range	25°C ~ 55°C
Operating Environment	Humidity range: Relative humidity	90%, without condensation
	Power supply	AC380V
	Power range	Card reading distance: 2cm, time: 2s
Others	IC card technology	LoRa/4G
	Lightning protection measures	Surge protection, signal lightning protection
	Cabinet body material	SMC

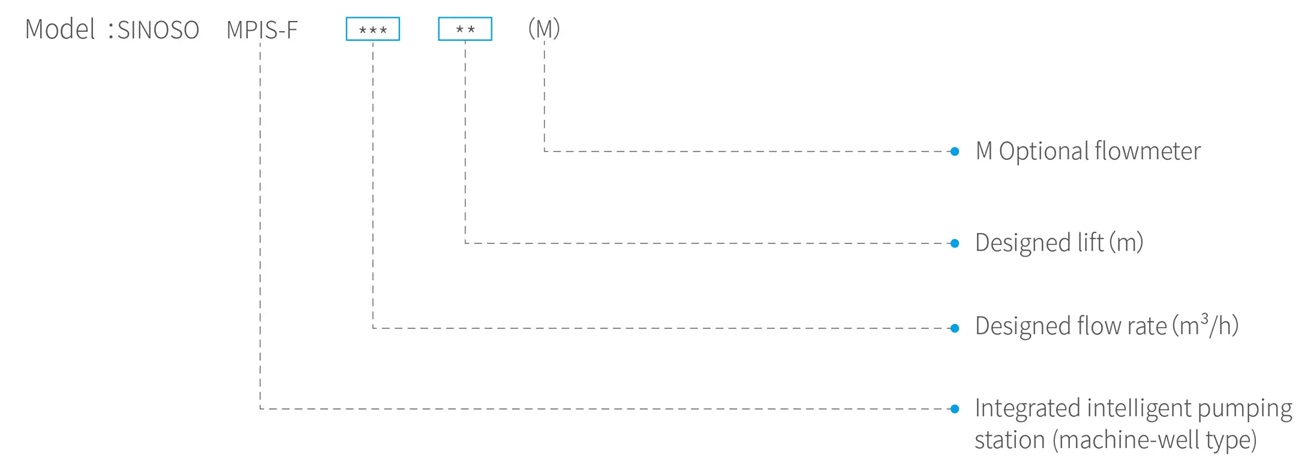

Type and Meaning



Application Scenarios

SINOSO MPIS integrated smart agricultural irrigation pump station (motor-pumped well) is specifically designed for intelligent water extraction and irrigation management using groundwater wells. It is ideal for the following applications:

• Farmland irrigation systems with groundwater sources

• Rural centralized water supply projects

• High-standard farmland development initiatives

• Water-saving society demonstration projects

• Smart agriculture IoT platforms and systems



Why Choose SINOSO

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
