IWM Compact Weather Station

IWM Compact Weather Station

The SINOSO IWM small weather station is a compact, high-performance device designed to monitor key meteorological parameters, including temperature, humidity, wind direction, wind speed, rainfall, light intensity, and air pressure. It operates automatically in harsh, unattended environments, complies with World Meteorological Organization (WMO) standards, and supports configuration via mobile app or terminal display. Suitable for agriculture, meteorology, hydrology, industry, environmental protection, tourism, R&D, and urban monitoring scenarios.

Product Features

1. Rugged & Autonomous Design：

• IP65-Rated Enclosure：High-strength materials withstand ice, heavy rain, and extreme temperatures (-40℃ to 85℃).
• Zero Installation Effort：Fully wireless, no cabling required—mounts in minutes on poles, tripods, or rooftops.
• Ultra-Low Power Operation： Solar + high-capacity Li-ion battery ensures 24/7 operation even in low-light conditions.

2. Precision Meteorological Sensing：

• 9-Parameter Monitoring ：Measures temperature, humidity, wind speed/direction, rainfall, solar radiation, and barometric pressure with ±1% accuracy (WMO-aligned)，PM2.5&PM10
• Dual Wireless Connectivity：4G LTE & LoRa options for flexible data transmission.
• High-Resolution Data Logging：Samples at 1-minute intervals, stored locally with 32GB memory (cloud sync).

3. Smart Remote Management：

• Mobile/Web Dashboard – Real-time data access via iOS/Android APP or cloud platform.

Technical Parameter

Project		Description
Elements	Meas.Range	Resolution	Accuracy
Temperature	-40~85℃	0.01℃	±0.3℃(@25℃)
Humidity	0~100%RH	0.024%RH	±3%RH (10%-80%RH)No Cond.
Atmospheric Pressure	300-1100hPa	0.1hPa	≤±0.3hPa(@25℃,950hPa-1050hPa)
Wind Speed	0~30m/s	0.1m/s	±(0.3+0.03v)m/sv Std.WS
Wind Direction	0~360°	1°	±3°(WS<10m/sH)
Illuminance	0-100klux	10klux	±3%&1%f.s
PM2.5	0-1000ug/m³±10%	lug/m³	±10%
PM10	0-1000ug/m³±10%	lug/m³	±10%
Rainfall	0-200mm/h	0.2mm	Error±10%





Selection Instructions





Application Scenarios

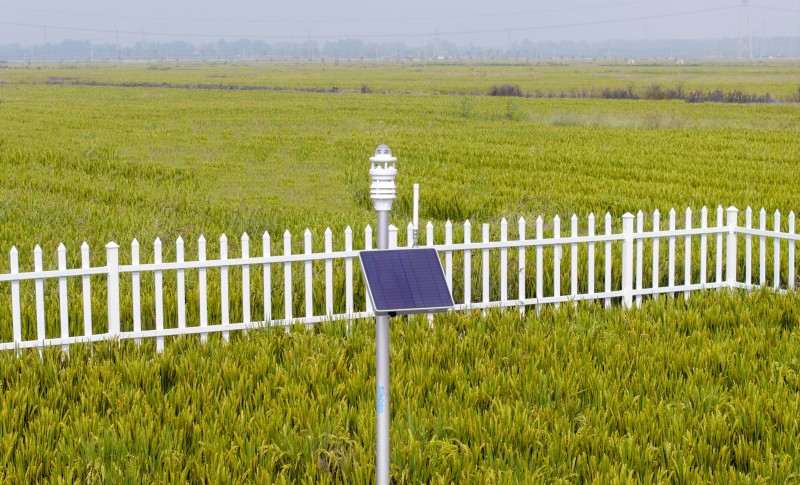

√ Agricultural weather monitoring (e.g., crop growth conditions)

√ Meteorological and hydrological data collection

√ Industrial environmental management

√ Urban microclimate monitoring

√ Tourism area weather forecasting

√ Scientific research and environmental protection projects



Why Choose SINOSO

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
