Low Power ISM Intelligent Soil Moisture Tester

A high-precision FDR-based sensor for real-time soil moisture and temperature monitoring. Features wireless connectivity, low-power operation, and multi-depth measurement—ideal for precision agriculture and environmental monitoring.

	Ultra-long battery life		Ultra-low power consumption
	Multi-layer measurement		Anti-tamper protection
	Protection rating		Suitable for various soil types
	Remote data query

Product Details

Low Power ISM Intelligent Soil Moisture Tester

The SINOSO ISM Micro Soil Moisture Tester is an FDR (Frequency Domain Reflectometry)-based sensor designed to measure surface soil moisture and temperature. It features fast response, high precision, and is equipped with a low-power, high-performance microprocessor. Powered by 4 AA batteries and featuring built-in wireless communication (no external wiring required), it combines accuracy, practicality, portability, and durability, making it ideal for agricultural soil moisture monitoring.

Product Features

1. Multi-Layer Measurement：Simultaneously monitors soil moisture content and temperature at multiple depths for comprehensive soil profiling.

2. IP68 Protection Rating：Fully sealed design, resistant to water, moisture, acids, alkalis, and harsh environmental conditions.

3. Ultra-Low Power Consumption：Auto-sleep mode during non-agricultural seasons, with remote wake-up capability to minimize energy usage.

4. Wireless Remote Data Access：Real-time data transmission via 4G/NB-IoT/LoRa to cloud platforms & mobile apps for instant monitoring.

5. High Accuracy Across Soil Types：Advanced FDR (Frequency Domain Reflectometry) technology ensures fast response, high stability, and minimal interference from soil composition.

6. Tamper-Proof Design：Prevents unauthorized removal or damage by non-professionals.

7. Long-Term Power Supply：Dual power option: Built-in lithium battery + solar panel for extended operation without frequent maintenance.

Technical Parameter

Project		Description
Soil moisture	Measurement range	0~100%
Soil moisture	Measurement accuracy	Humidity:±3%
Soil tempera-ture	Measurement range	-20℃~55℃
Soil tempera-ture	Measurement accuracy	±0.5℃
Appearance and structure	Structural form	Integrated tube type(column type)
	Protective casing	Alloy+PVC
	Overall dimension	ITC-PC-A/P-φ63-500+100n-MPS-n
	Spacing between measuring points	100mm
	Number of measuring point layers	Layers 1 to 5
Others	Communication method	LoRa/4G
	Power supply method	BLB/SP
	Protection level	IP68

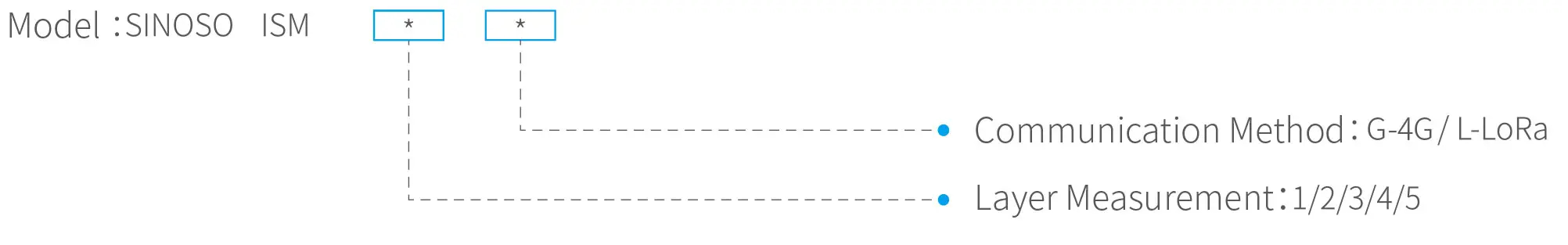

Selection Instructions

Application Scenarios

√ Agricultural production: Monitoring soil moisture for crop growth management.

√ Geological disaster prevention: Tracking soil conditions related to landslides or mudslides.

√ Environmental research: Collecting soil data for ecological studies.

Why Choose SINOSO

Since 2006

SINOSO holds numerous prestigious certifications, establishing itself as a benchmark in the industry. Our strong research capabilities are built on deep collaborations with renowned universities and research institutions. We provide one-stop solutions, ensuring rapid response through our nationwide service network. As a CCTV-reported company, we actively participate in national strategic projects, making us a preferred partner with both technical strength, comprehensive services, and extensive influence.

Research Partner

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
