IEV Smart Electric Control Valve

SINOSO IEV Smart Electric Control Valve

SINOSO IEV smart electric control valve is designed with a high-performance, low-power microprocessor and supports automatic sleep and remote wake-up functionality. It features a built-in battery combined with a solar charging system for reliable, energy-efficient operation. Supporting multiple wireless communication protocols such as LoRa and 4G, it enables remote, centralized, and automated valve control. With an integrated electromechanical design, the valve offers comprehensive functionality, stable performance, an advanced control system, and ease of operation and maintenance.

1. Core Protection & Construction

• Ingress Protection: IP67 certified (IEC 60529)
• Sealed Design: Hermetic alloy enclosure for harsh environments
• System Integration: Unified electrical control and transmission assembly

2. Control Interface

• Interactive Display: Real-time LCD with tactile touch controls
• Local Operation: Manual override capability
• Status Monitoring: Valve position/battery level visualization

3. Safety & Diagnostics

• Multi-Protection: Overload + position limit safeguards
• Proactive Alerts: Wireless transmission of fault diagnostics

4. Intelligent Functions

• Precision Actuation: Microprocessor with angular sensing
• Automation: Programmable timing and position adjustment

5. Connectivity

• Dual-mode Communication: LoRaWAN & 4G cellular
• Cloud Integration: Remote control via platform/APP

6. Power Management

• Energy Optimization: Ultra-low standby consumption (≤0.1W)
• Wireless Wake-up: On-demand activation

7. Sustainable Operation

• High-density lithium battery (≥3-year lifespan)
• Solar charging support (EN 50530 compliant)

Technical Parameter

Project		Description
Basic Parameters	Nominal pressure	PN10/PN16
	Nominal diameter	DN80~DN350
	Connection type	Wafer type
	Structural form	Vertical plate type
Applicable Environment	Applicable medium	Water, oil
	Applicable temperature	Aluminum alloy
Materia	Actuator housing	Water, oil
	Valve body	Cast iron/Stainless steel
	Valve plate	Cast iron/Stainless steel
	Valve seat	Soft seal
Others	Communication method	LoRa/4G
	Power supply method	Built-in lithium battery + solar charging system
	Protection level	IP67

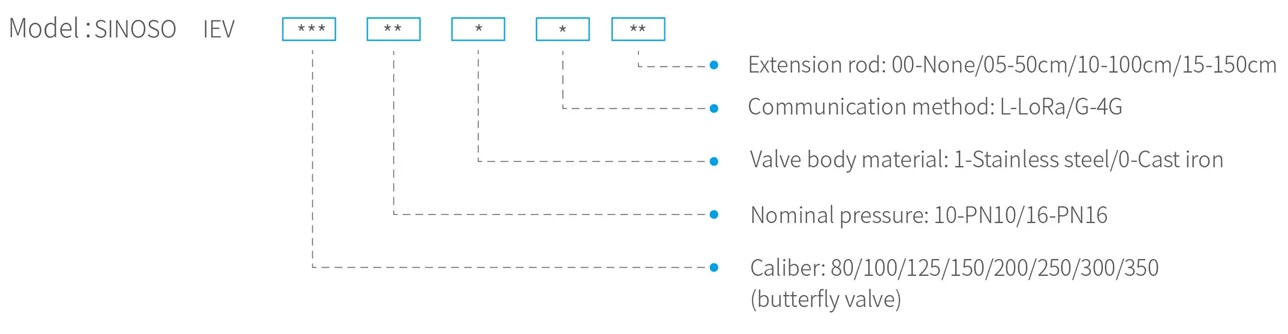

Type and Meaning



Application Scenarios

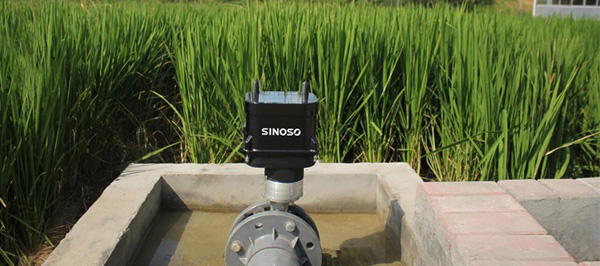

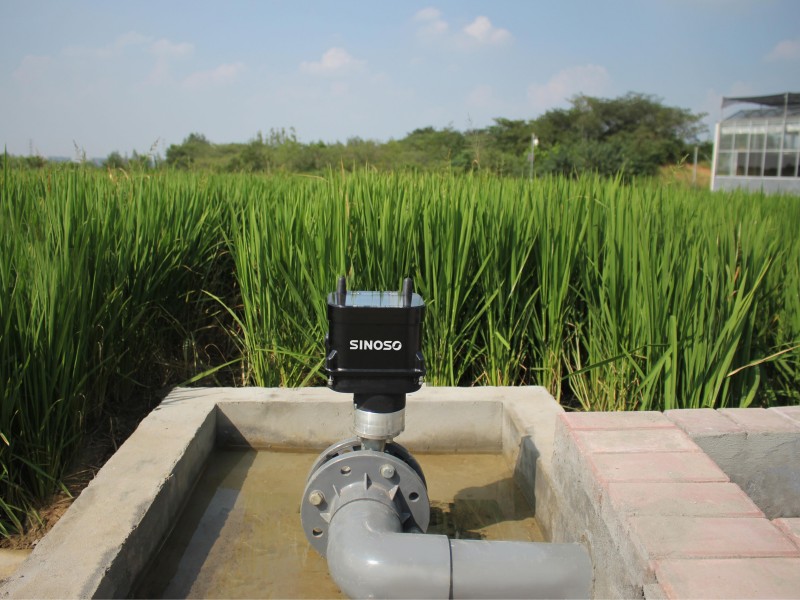

SINOSO IEV smart electric control valve is widely used in various sectors, including agricultural irrigation, urban landscaping, municipal water supply, and environmental protection.



Why Choose SINOSO

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
