ISG Integrated Intelligent Precision Water Control Gate
SINOSO ISG Intelligent Water Control Gate offers a cutting-edge solution for managing irrigation systems with precision. Equipped with a solar-powered lithium battery and seamless connectivity via LoRa/4G, it provides real-time remote control through mobile apps or local manual settings. The system allows for highly accurate control of water flow, with precision positioning within ±1cm, ensuring optimal irrigation and drainage management. Built with robust SMC composite and alloy materials, it operates efficiently in varying weather conditions, from 0℃ to 65℃, while being easy to install and maintain. Ideal for modern, sustainable irrigation systems, the ISG Gate enhances water resource management in agricultural and industrial applications.
Product Features
1. Intelligent Remote Control：
Dual-control modes:
Cloud platform for centralized watershed management
Mobile APP for field operator access
Real-time monitoring: Gate position, flow rate, battery status
2. Off-Grid Solar Power System：
20W high-efficiency panel with MPPT controller
26Ah LiFePO4 battery (30-day autonomy in cloudy conditions)
3. Robust Engineering Materials：
SMC composite + aluminum alloy construction
Corrosion resistance: Salt spray test >1000hrs (ISO 9227)
Weight advantage: 30% lighter than steel gates
4. Flexible Configuration：
Standard sizes: DN300, DN500, DN800, DN1000
Custom designs: Tailored to channel dimensions
Tool-free installation: <2-hour deployment
5. Fail-Safe Operation：
Multi-protection system:
Overcurrent/stall detection
Runtime timeout cutoff
Low-voltage shutdown
Manual override:
Touchscreen interface
Emergency handwheel operation

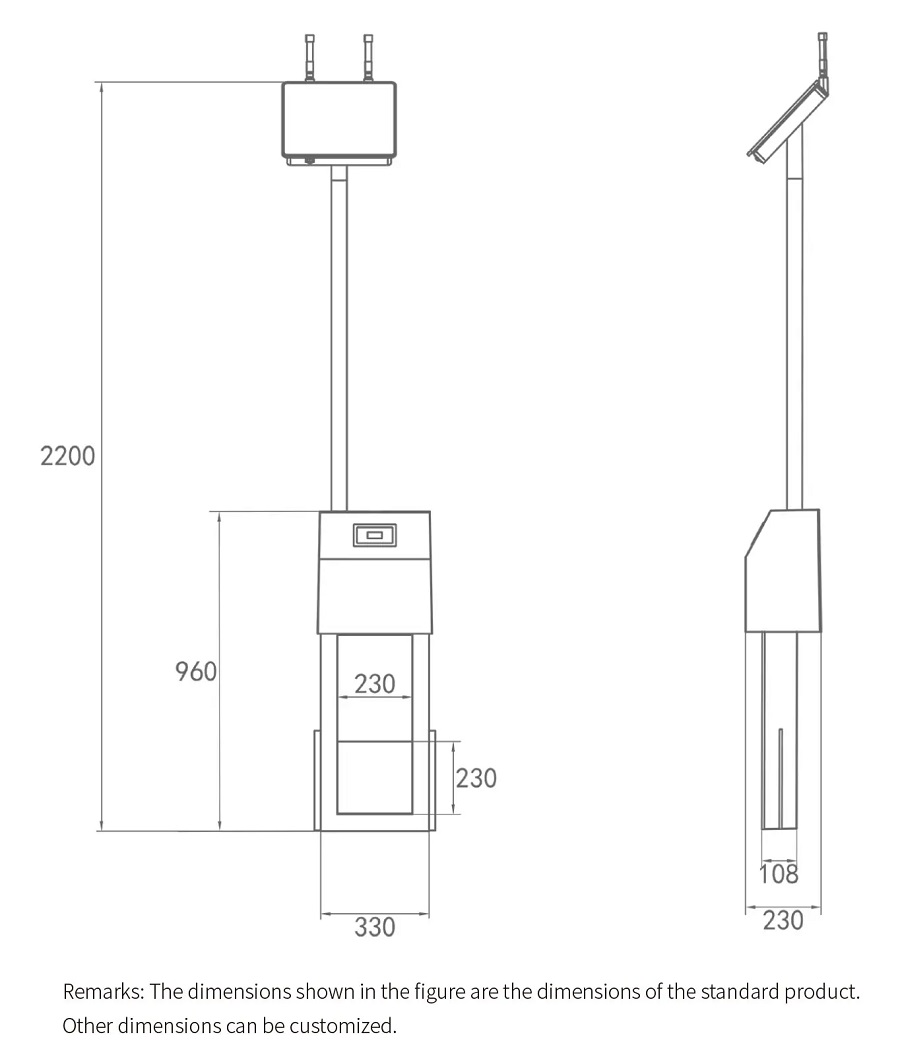

Technical Parameter
| Parameter Table | |
| Product Model | SINOSO ISG |
| Specified Dimensions | 230*230,other dimensions can be customized |
| Power Supply Method | With a built-in lithium battery+solar power supply system |
| Communication Method | LoRa/4G |
| Control Method | Mobile terminal/APP,local manual,emergency joystick |
| Working Environment | Temperature:0℃to 65℃,Relative humidity:<90%RHS |
| Material | SMC+alloy |
| Outlet Size | 230*230(mm) |

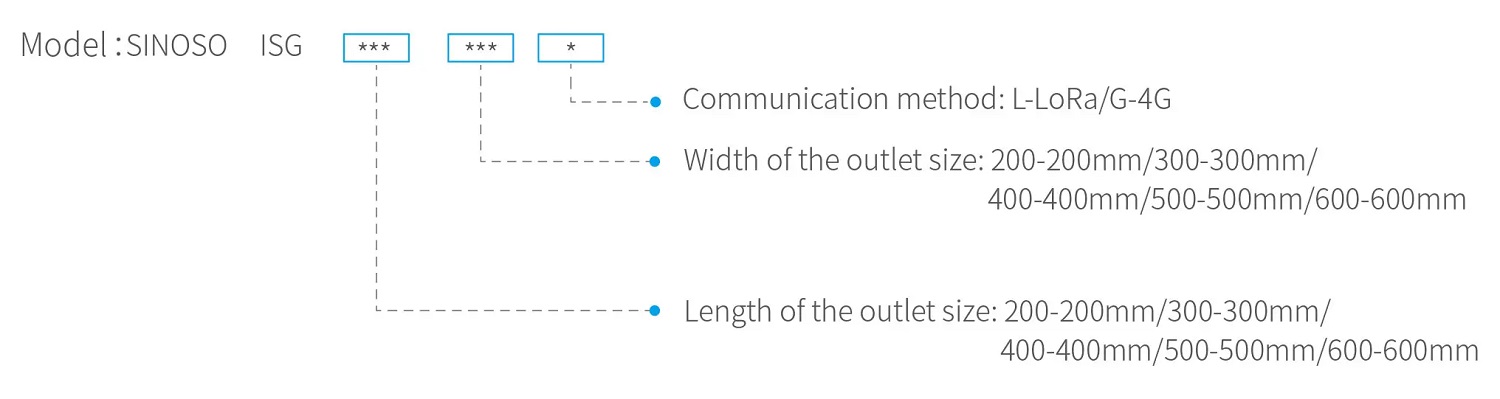

Type and Meaning

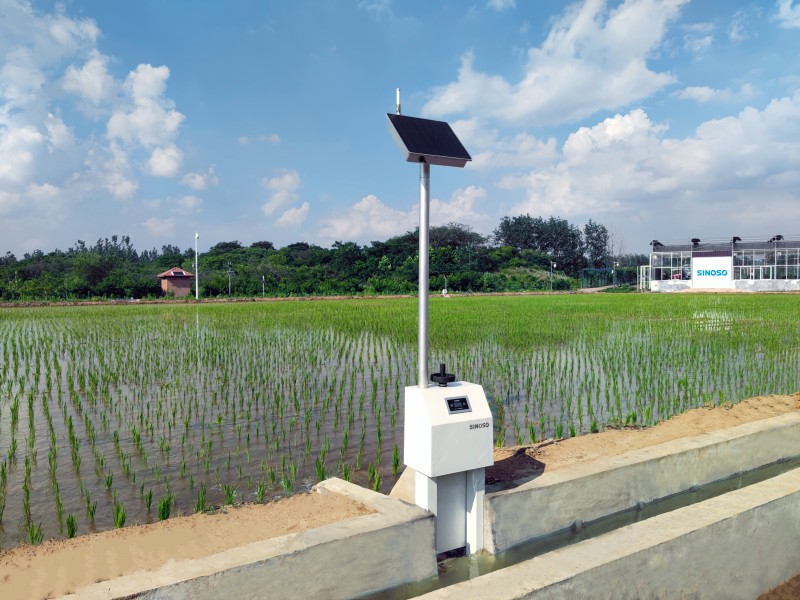

Application Scenarios
SINOSO ISG Intelligent Water Control Gate is ideal for precision irrigation and drainage management, enabling efficient water flow control in agricultural fields, water channels, and reservoirs.
Why Choose SINOSO
Research Partner
SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
