ITEV Multi Functional Intelligent 3-way Electric Valve

ITEV Multi Functional Intelligent 3-way Electric Valve

ITEV multi functional intelligent 3-way electric valve is a new-generation multifunctional smart irrigation control valve with built-in flow and pressure measurement. It is designed for precise water control and metering in irrigation systems. Featuring an ultra-low power consumption design, the intelligent 3-way electric valve is powered by a hybrid system combining a lithium battery and solar energy—eliminating the need for external wiring. It utilizes LoRa wireless communication, allowing remote monitoring and control via mobile app or cloud platform. The valve is also equipped with an LCD display and touch-sensitive buttons for local parameter settings, real-time status viewing, and manual valve control. Compact in size yet powerful in functionality and reliable in performance.

1. Dual-Outlet Water Distribution：

• Bi-directional flow control (up to 30% wider coverage vs. standard valves)
• Pressure monitoring: 0–1.6 MPa (±1% FS)

2. On-Site Touchscreen Control：

• LCD with capacitive touch
• Real-time data: Flow rate, pressure, battery status, valve position
• Manual override: Local open/close without wireless signal

3. Energy-Independent Operation：

• Solar + Li-ion battery
• Standby power (5+ years without maintenance)

4. Smart Diagnostic Alerts：

Real-time warnings:

• Pipe leakage/dry-run detection
• Low battery (<20%) alert
• Motor stall/overcurrent protection

5. Remote IoT Management：

• LoRaWAN connectivity
• Mobile APP & web dashboard (Android/iOS/PC)
• No control cabinet required

6. Rugged Industrial Design：

• IP65 aluminum enclosure (dustproof & jet-water resistant)

Technical Parameter

Project		Description
Basic Parameters	Nominal pressure	PN10
	Caliber of the three-way valve	DN80 (De90)
	Valve body structure	Ball valve
	Connection type	Thread
	Material	Reinforced nylon + stainless steel
Flow Monitoring	Initial flow velocity	≥0.1 m/s
	Monitoring accuracy	Level 4
Pressure Monitoring	Pressure range	0~1.6 Mpa
	Monitoring accuracy	1% FS
Environmental Conditions	Applicable medium	Water, oil
	Applicable temperature	0~55°C
Others	Communication method	LoRa
	Power supply mode	Lithium battery and solar charging system
	Protection level	IP65

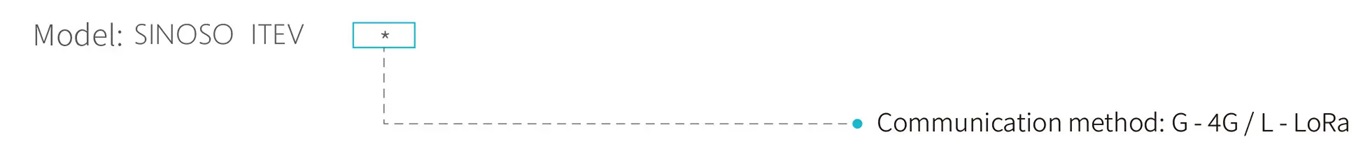

Type and Meaning

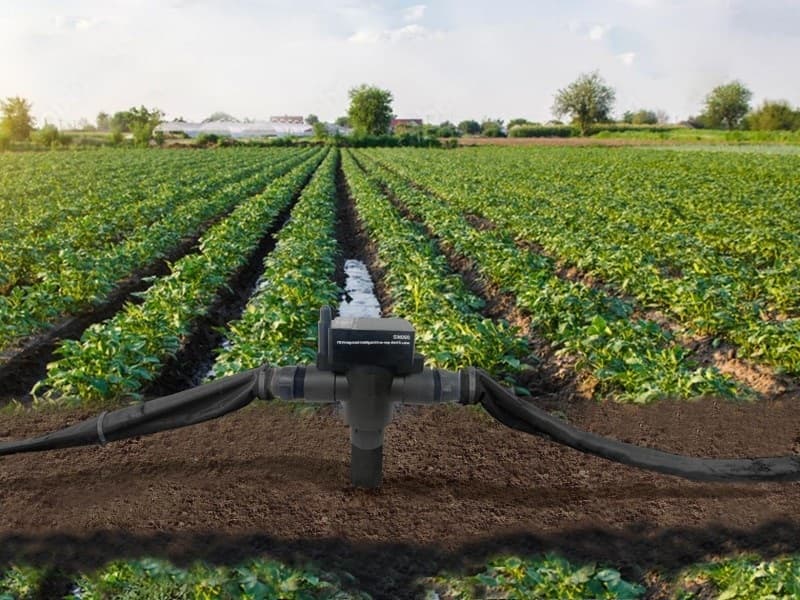

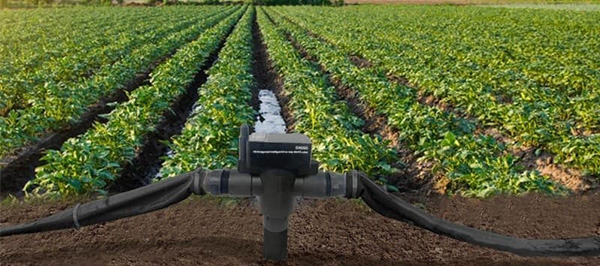

Application Scenarios

SINOSO ITEV intelligent 3-way electric valve is widely used in a variety of efficient water-saving irrigation systems, intelligent agricultural planting systems, pipeline control systems, etc.
