RDFM Non-Contact Radar Open Channel Flowmeter

RDFM Non-Contact Radar Flowmeter for Open Channels

The Radar Open Channel Flowmeter utilizes advanced FMCW millimeter-wave radar technology for accurate, non-contact flow velocity and liquid level measurements in open channels. With a flow velocity measurement range of 0.1~2m/s and a liquid level range of 0.2~12m, it offers ±0.01m/s accuracy for velocity and ±0.01m for liquid level. The system features 24GHz radar for flow velocity and 60GHz radar for liquid level, providing high precision and fast response times of 5~60 seconds.

Designed for harsh environments, it is fully protected with an IP65 enclosure, ensuring reliable operation in rain, dust, and extreme temperatures. The device is unaffected by sediment, foam, or debris, making it ideal for applications in agricultural irrigation, hydroecology, and flood monitoring.

Product Features

1. Non-Contact mmWave Radar Technology：

24GHz FMCW radar for precise velocity & level detection

No calibration needed – immune to sediment, foam, and floating debris

Measurement range: 0.1–2m/s (velocity), 0.2–12m (level)

2. Ultra-Long Battery Life：

<1mA standby current (5+ years on single charge)

Solar-powered option for permanent installations

3. Compact & Lightweight Design：

Integrated array antenna (no protruding parts)

Easy mounting: less weight, pole/wall-mountable

4. Wireless Configuration & Data Access:

Bluetooth 5.0 for field setup & diagnostics

4G/LoRa/NB-IoT for cloud data transmission

5. All-Weather Reliability:

IP65 aluminum enclosure (dustproof & waterproof)

-30°C to +70°C operating range

Unaffected by rain, wind, or temperature swings

Technical Parameter

Project		Description
Flow velocity	Measurement range	0.1~2m/s
	Accuracy	土0.01m/s
	Resolution	0.02m/s
	Measurement frequency	24GHz
	Measurement technology	Millimeter-wave radar
	Response time	5s~60s
	Protection level	IP65
Liquid level	Measurement range	0.2~12m
	Accuracy	士0.01m
	Resolution	0.002m
	Measurement frequency	60GHz
	Measurement technology	Millimeter-wave radar
	Response time	5s~60s
	Protection level	IP65

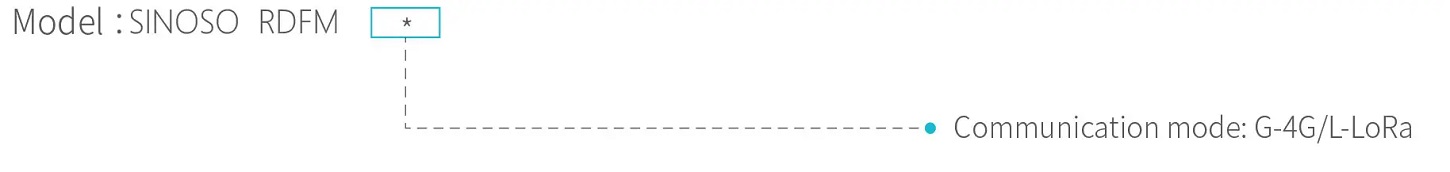

Type and Meaning

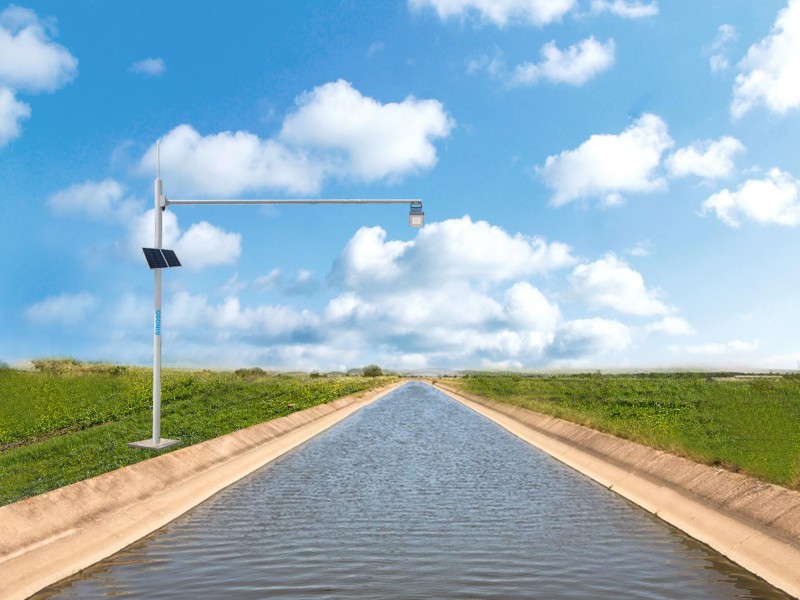

Application Scenarios

SINOSO Radar Open Channel Flowmeter is ideal for real-time water flow and level monitoring in open channels, ensuring precise data for agricultural irrigation and flood management. Its non-contact radar technology makes it perfect for reliable performance in harsh environmental conditions.
