MLL Intelligent Laser Water Level Meter with 4G Connectivity

Intelligent Laser Water Level Gauge: Non-contact laser measurement with ±1mm accuracy for rivers, lakes and flood monitoring. Features wireless 4G/LoRa transmission, IP67 protection and 3+ year battery life. Real-time data via mobile/PC.

	High-precision monitoring		Touchscreen control
	Easy installation		Fog-resistant measurement
	Maintenance-free operation		Real-time data acquisition

Product Details

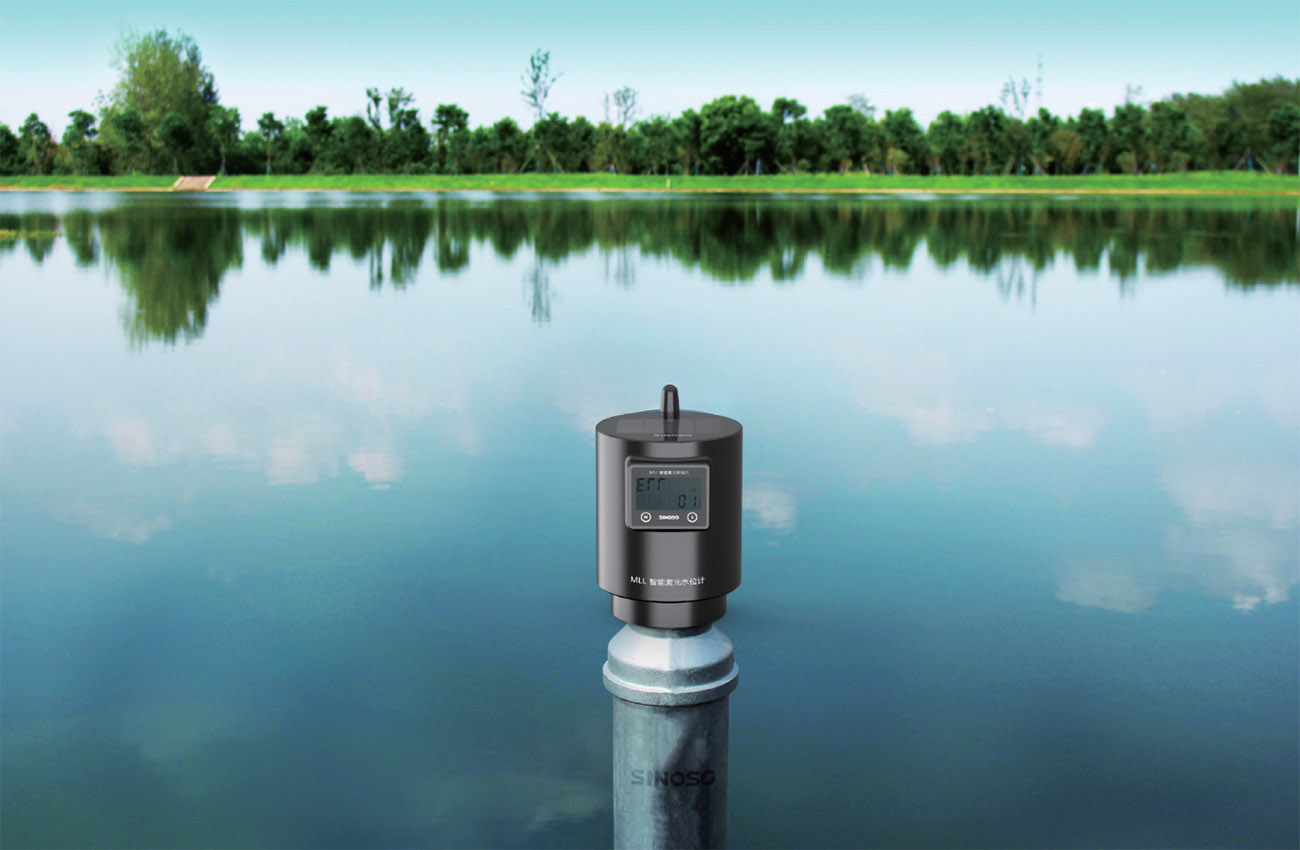

MLL Intelligent Laser Water Level Meter with 4G Connectivity

The MLL Intelligent Laser Water Level Meter offers highly accurate, non-contact water level measurement with a range of up to 30 meters. Featuring a robust alloy construction and IP67 protection, it ensures reliable operation in harsh environments, withstanding temperatures from 0°C to 55°C. Equipped with advanced LoRa/4G communication, it transmits real-time data to cloud platforms for easy monitoring via mobile or PC. The device operates on a long-lasting built-in lithium battery, offering over three years of maintenance-free service. Designed for vertical installation in various well tubes, it delivers precise measurements with a resolution of 0.5mm, even in challenging conditions.

Wireless Water Level Monitoring Solution

Product Features

1. High-Precision Laser Measurement

Wide measuring range: 0–30m

Ultra-high accuracy: ±2mm

Anti-fog lens coating: Prevents condensation for reliable performance

2. Maintenance-Free Design

Fully enclosed alloy housing (IP68 waterproof & dustproof)

No moving parts: Resists corrosion, freezing, and biofouling

Operates in extreme temps: -20°C to +60°C

3. Real-Time Wireless Data

4G/LoRa/NB-IoT connectivity for cloud transmission

Mobile APP & web dashboard integration

Modbus/RS485 output for industrial systems

4. User-Friendly Touch Control

Integrated LCD touchscreen for on-site configuration

Solar + high-capacity Li-ion battery (3+ years lifespan)

Low-power design

5. Easy Installation：

Compact & lightweight

No calibration needed – ready to deploy

Technical Parameter

Project		Description
Basic parameters	Range	0~30m
	Accuracy	±2mm
	Resolution	0.5mm
	Blind Zone	0.1m
	Material	Alloy
Environmental conditions	Temperature	0~55℃
Installation	Tube Diameter	≥90mm
	Well Tube Material	Galvanized steel pipes,PVC,etc.
	Installation	Vertical installation
Others	Reflection Medium	Stainless steel floating body,PEfloating board
	Communication	LoRa/4G
	Power Supply	Built-in lithium battery
	Battery Life	≥3years
	Protection level	IP67

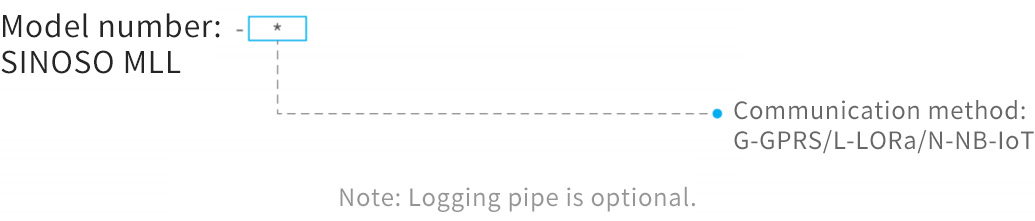

Type and Meaning

Application Scenarios

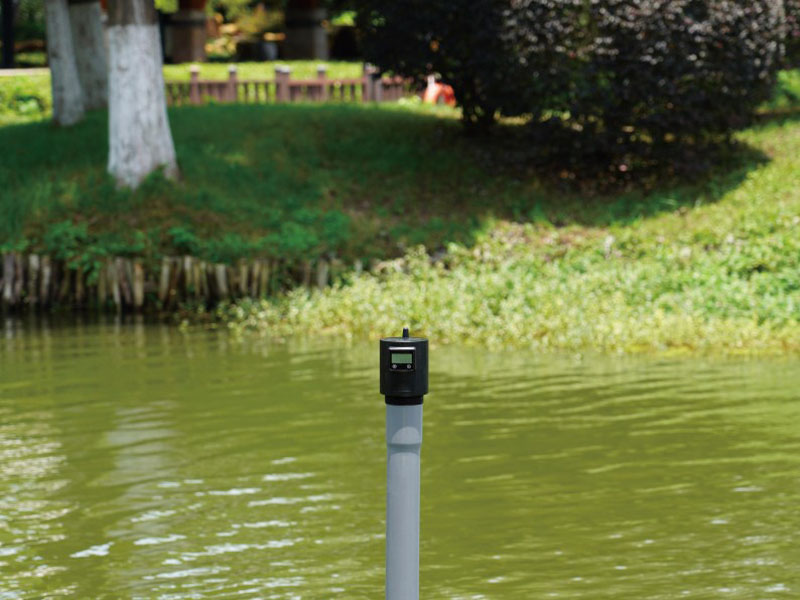

SINOSO MLL Intelligent Laser Water Level Meter is ideal for flood and river monitoring, providing real-time data to enhance water resource management and prevent flooding.

Why Choose SINOSO

Since 2006

SINOSO holds numerous prestigious certifications, establishing itself as a benchmark in the industry. Our strong research capabilities are built on deep collaborations with renowned universities and research institutions. We provide one-stop solutions, ensuring rapid response through our nationwide service network. As a CCTV-reported company, we actively participate in national strategic projects, making us a preferred partner with both technical strength, comprehensive services, and extensive influence.

Research Partner

SINOSO is a postgraduate workstation in Jiangsu Province, a research cooperation unit, a research experimental base and a postgraduate training base of China Agricultural University, Nanjing Agricultural University, Hohai University, Jiangsu University, Southwest University of Science and Technology, Jiangsu Academy of Agricultural Sciences, and Nanjing Institute of Agricultural Mechanization of the Ministry of Agriculture and Rural Affairs.
