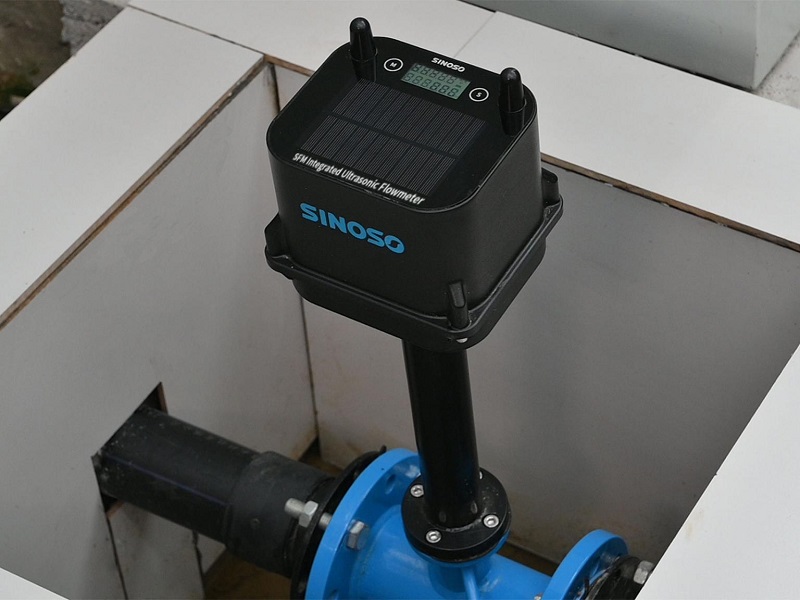

SFM Integrated Ultrasonic Remote Monitoring Flowmeter

SFM Integrated Ultrasonic Remote Monitoring Flowmeter

The SFM Ultrasonic Flowmeter is an advanced, integrated solution designed for precise water flow measurement in full pipes. It features a broad pressure range of up to 1.6MPa and supports flow velocities between 0.05 to 3m/s. With an accuracy class of 1.5, it ensures reliable data across a variety of applications. The flowmeter operates efficiently in temperatures from 0 to +55°C, and integrates LoRa/4G communication for seamless data transmission. Powered by both built-in battery and optional solar energy, it offers a sustainable solution for remote installations. Constructed from durable alloy or stainless steel, it is designed for horizontal mounting with the meter head facing upwards to optimize sunlight exposure.

Product Features

1. Superior Stability & Accuracy：

Compact design with high immunity to interference

Class 1.5 accuracy (EN 12261 certified)

Software-based signal filtering for low-flow detection

2. Maintenance-Free Operation：

No moving parts – zero wear or pressure loss

10+ year lifespan (corrosion-resistant transducer)

3. Precise Low-Flow Measurement：

0.05 m/s minimum flow velocity

Bidirectional flow measurement

4. Remote Data Access：

Dual-communication: LoRa + 4G LTE

Cloud platform integration for centralized management

5. Self-Powered Design：

3.6V lithium battery (5-year operation)

Optional solar power for permanent installations

6. Flexible Installation：

Multi-angle mounting (horizontal/vertical/piped)

Technical Parameter

Project	Description
Pressure range	1.6MPa
Nominal diameter	DN80-DN400
Measurement accuracy	Accuracy class 1.5
Flow velocity range	0.05-3m/s
Measured medium	Water (full pipe)
Working environment temperature	0~+55℃
Communication method	LoRa/4G
Installation method	Horizontal,meter head up(sunlight required)
Power supply	Built-in battery+solar power supply system
Material	Alloy/stainless steel

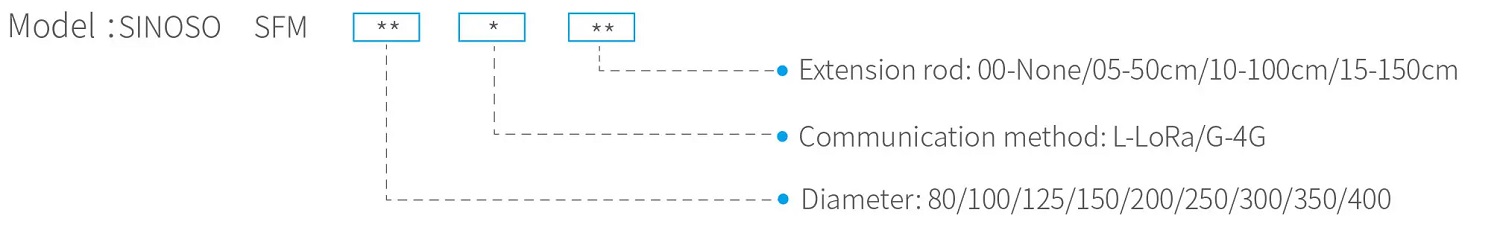

Type and Meaning





Application Scenarios

SINOSO SFM ultrasonic flowmeter is an ideal choice for accurate water flow measurement in municipal and industrial systems. It can read the meter remotely and facilitates centralized management.
