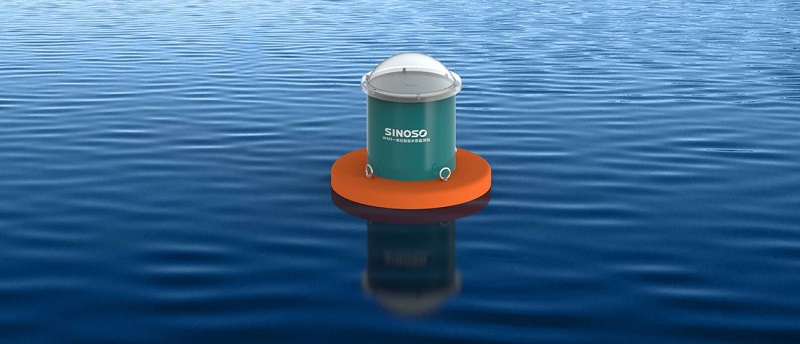

WMS Solar-Powered Intelligent Water Quality Monitor

WMS Solar-Powered Intelligent Water Quality Monitor

The Integrated Intelligent Water Quality Monitor is a highly efficient, autonomous solution for continuous water quality monitoring in rivers, lakes, and reservoirs. It accurately measures up to eight essential parameters, including dissolved oxygen, turbidity, conductivity, and pH, with additional sensors for ammonia nitrogen and algae. Powered by solar energy with a backup battery, it ensures reliable operation in remote locations. The device features wireless connectivity via LoRa and 4G LTE for real-time data transmission, making it perfect for environmental monitoring and aquaculture applications. With a self-cleaning probe system and durable, corrosion-resistant construction, this monitor offers long-term, low-maintenance performance.

Product Features

1. Configurable Measurement Capabilities：

Standard 5-parameter configuration: Temperature, pH, dissolved oxygen (DO), conductivity, turbidity

Expandable to 8 parameters: Optional add-ons include ORP, ammonia (NH₃-N), chlorophyll/blue-green algae

High-accuracy sensors: ±0.1 pH, ±1% FS for DO, ±1% for conductivity

2. Broad Application Spectrum:

Water type compatibility: Freshwater, brackish water, and seawater (with anti-corrosion probes)

Environmental tolerance: Operates in clear to semi-turbid conditions (NTU range: 0-1000)

3. Wireless Data Transmission:

Dual-communication protocol:LoRa (long-range, low-power) - up to 10 km line-of-sight

4G LTE (real-time cloud connectivity)

Data integration: Compatible with major IoT platforms (Modbus, MQTT protocols)

4. Autonomous Deployment System:

Buoy-based installation: UV-resistant polyethylene float with 150kg buoyancy

Solar power system: 20W panel with MPPT controller + 26Ah lithium backup

Anti-fouling design: Marine-grade stainless steel mounting hardware

5. Maintenance-Optimized Design:

Automatic probe cleaning: Ultrasonic wiper system (programmable 1-24h intervals)

Extended service life:

Sensor lifespan: 3-5 years (varies by parameter)

Minimal calibration required: 6-month recommended interval

Technical Parameter



Project		Description
Dissolved oxygen sensor (Standard configuration)	Measuring range	0~20mg/L
	Accuracy	±0.6mg/L
	Resolution	0.01mg/L
Turbidity sensor (Standard configuration)	Measuring range	0~200NTU
	Accuracy	<3%F ·S
	Resolution	0.1NTU
Conductivity sensor   (Standard configuration)	Measuring range	0~5000μS/cm
	Accuracy	±1.5%F ·S
	Resolution	1μS/cm
pH sensor (Standard configuration)	Measuring range	0~14pH
	Accuracy	±0.1pH
	Resolution	0.01pH
Temperature (Standard configuration)	Measuring range	0~50℃
	Accuracy	±0.5℃
	Resolution	0.1℃
ORP sensor	Measuring range	-1500mV~+1500mV
	Accuracy	±6mv
	Resolution	1mv
Ammonia nitrogen sensor	Measuring range	0~100mg/L
	Accuracy	±10%
	Resolution	0.1mg/L
Cyanobacteria (blue-green algae) sensor	Measuring range	0~100ug/L
	Accuracy	0.3ug
	Resolution	0.01ug
Other information	Power supply	Combination of storage battery and solar energy
	Communication	LoRa/4G
	Installation	Buoy type
	Protection	IP65

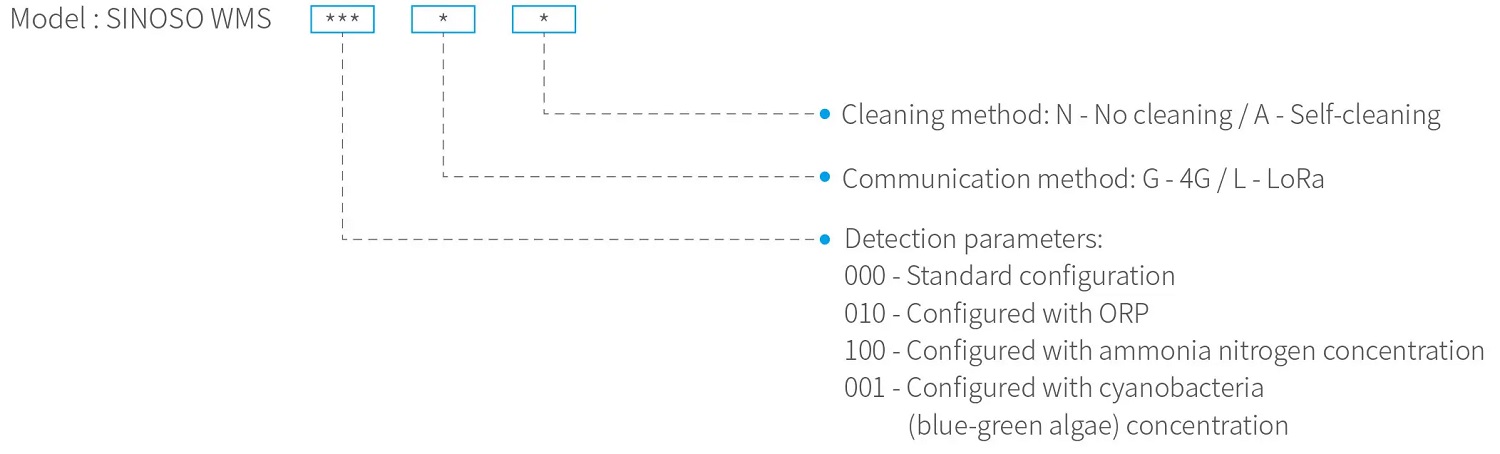

Type and Meaning

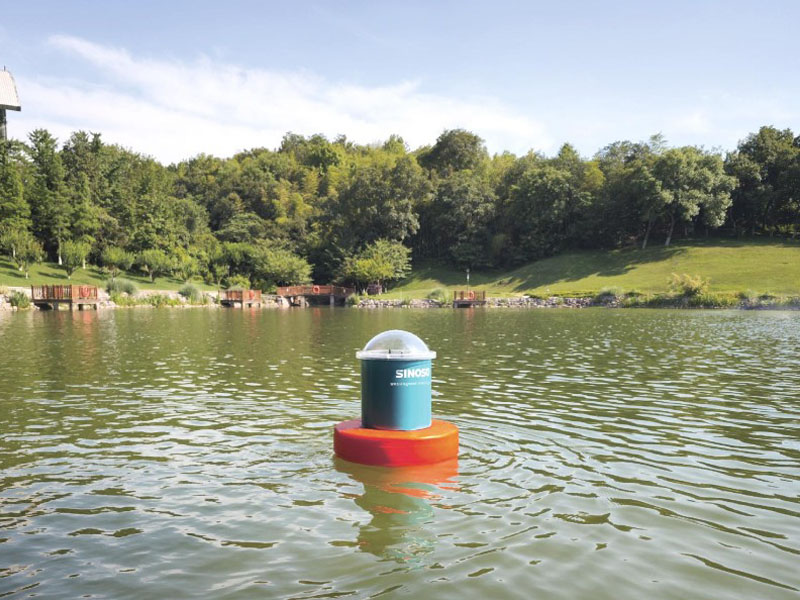

Application Scenarios

SINOSO WMS Solar-Powered Intelligent Water Quality Monitor is ideal for environmental monitoring, providing real-time data on key water parameters in rivers, lakes, and reservoirs.
